Residential Solar Energy System Home 1KW 2KW 3KW 4KW 5KW Off Grid Solar Power System

FOB Reference Price:Get Latest Price
$0.50 - $1.20 / Watts | 1 Watt/Watts (Min. Order)
System Type:
Off-Grid Solar System
Solar Power (W):
1120W
Shipping:
Support Express · Sea freight · Air freight · Land freight
Lead Time:
Quantity(Watts) 1 - 1000 >1000
Est. Time(days) 10 Negotiable
Customization:
Customized logo (Min. Order: 10 Watts)
Customized packaging (Min. Order: 10 Watts)

More

Graphic customization (Min. Order: 10 Watts) Less
Report Suspicious Activity
Overview
Quick Details
Brand Name:
Sunpal
Model Number:
SP2KW-OFF
Specification:
Normal
Application:
Home
Output Voltage (V):
110-250V
Load Power (W):
2KW
Work Time (h):
Depend On Sunshine Duration
Solar Panel Type:
Monocrystalline Silicon
Battery Type:
Lead Acid
Controller Type:
MPPT
Output Frequency:
50/60HZ
Product Name:
2KW Solar Energy System
Solar Panel:
280W Mono 60 Cells
Mounting System:
Pitched Roof (STD)
Off Grid Inverter:
2KW Single Phase
Wave Form:
Pure Sine Wave
AC Voltage:
110-250V(Adjustable)
Peak Power:
6000W
Battery Voltage:
48VDC
Communication:
RS485
Warranty:
2 Years
Product Certification Verified
CE Certified.
EMC Certified.
RoHS Certified.
TUV Certified.
Valid from 2019-01-20 until 2020-01-20
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Plywood with Pallets
Port
Shanghai/Ningbo
Lead Time :
Quantity(Watts) 1 - 1000 >1000
Est. Time(days) 10 To be negotiated
Product Description

What's Included:

Components
SP1KW-OFF
SP2KW-OFF
SP3KW-OFF
SP4KW-OFF
SP5KW-OFF
300W Mono Solar Panel
2 Piece
4 Piece
6 Piece
9 Piece
12 Piece
MC4 Y Branch
1 Pair
1 Pair
2 Pair
/
/
Combiner Box
/
/
/
3 in 1 out
4 in 1 out
Off Grid Inverter
1KW
2KW
3KW
4KW
5KW
12V 200AH Battery
1 Piece
2 Piece
4 Piece
4 Piece
8 Piece
DC Cable
100 Meters
100 Meters
200 Meters
200 Meters
200 Meters
MC4 Connector
4 Pair
4 Pair
6 Pair
6 Pair
8 Pair
Mounting System
Standards Pitched Roof ( Customized Optional)

Note: Product dimensions and physical appearance in this data sheet are nominal.Sunpal Power reserves the right to make the product changes from time to time,without prior notification, which may change the dimensions and/or physical appearance shown.

Off Grid System Configuration



Mono Solar Panels

Peak Power Watts: 300W (SP300M-60)
Maximum Power Voltage: 32.2V
Maximum Power Current: 9.33A
Open Circuit Voltage: 39.5V
Short Circuit Current: 9.84A
Dimensions:1650×992×35 mm (65.0×39.1×1.38 inches)
Weight:18.6 kg (41.0 lb)



Off Grid Inverter

The Off Grid Inverter is Integrated with a MPPT Solar Charger Controller,a High Frequency Pure Sine Wave Inverter and a UPS Fuction Module in One Machine.Remote Monitoring is Available by Using Wifi Monitoring Kit.


PV Mounting System

Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional



Lead Acid GEL Battery

Capacity(kWh): 2.4
Nominal Voltage(Vdc): 12
Nominal Capacity(AH): 200
Depth of Discharge: 70%



Main Disconnect Box

DC Disconnect

AC Disconnect

Battery Disconnect

PV Combiner

Flexible Inputs Optional

IP65 Protection Degree




DC & AC Disconnect Switch

IP Rating: IP66

Rated Voltage: 600VDC/1000VDC

Connection Type: M20,M25,MC4

Rated Current: 16A,32A




DC Cable & MC4 Connector & Y Branch

Cross Section: 4mm2, 6mm2 Optional

Rated Voltage:600VDC(UL)/1000VDC(TUV)

Rated Current: 55A,70A

Colors: Black For STD, Red Optional.

Lifetime:≤25 Years



PV Tools

Wire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool

Our Factory
Packing & Delivery
Model
Single Set
20' Container Load
40' Container Load
SP1KW-OFF
1.7*0.45*1
30 Sets
70 Sets
SP2KW-OFF
1.7*0.6*1
12 Sets
28 Sets
SP3KW-OFF
1.7*0.6*1
12 Sets
28 Sets
SP4KW-OFF
1.7*0.75*1
10 Sets
24 Sets
SP5KW-OFF
1.7*0.75*1
5 Sets
12 Sets

Note: The Above packing information contained in this web is subject to change without notice.

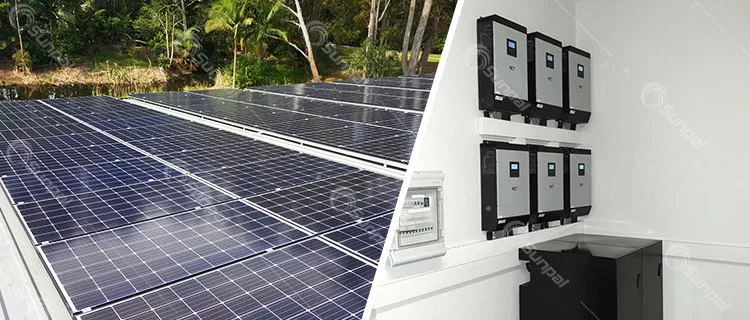

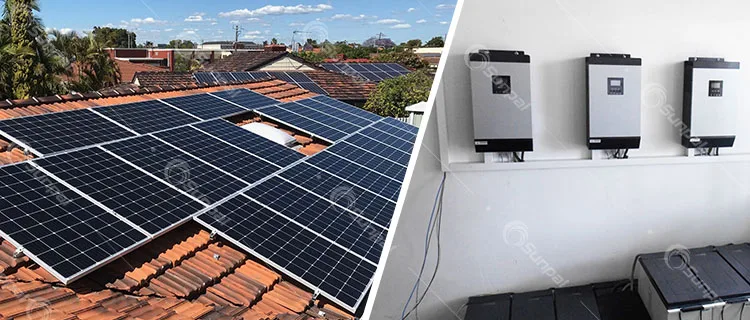

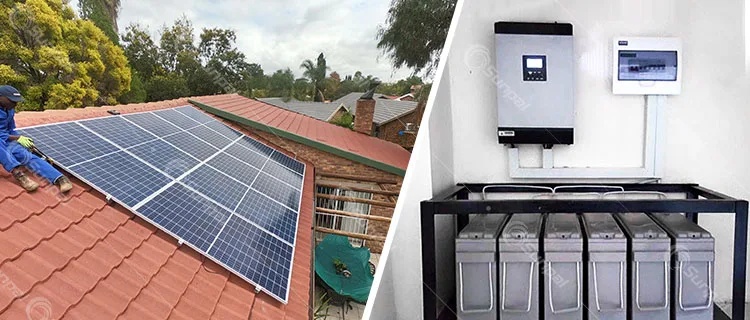

Applications
Become A Distributor
What Our Distributor Receive
System Design and Support
Technical Support
Installer Training Seminars
Solar PV Best Practices Documentation
Marketing & Sales Support
Samples Assets
Preferential Pricing
Exhibition Support
