Yuasa 2V 800Ah Battery Best Price Vrla Gel Solar 2V 800 Ah For Wind Power System

FOB Reference Price:Get Latest Price
$144.00 - $180.00 / Piece | 10 Piece/Pieces (Min. Order)

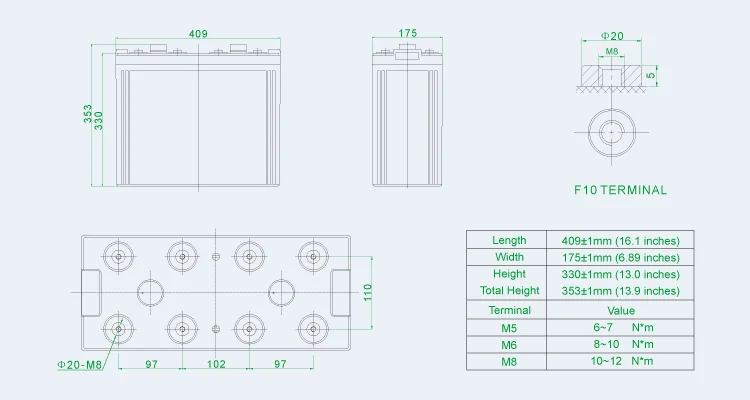

Battery Size:
353*409*175mm
Nominal Capacity:
800ah
Nominal Voltage:
2v
Shipping:
Support Sea freight
Contact Supplier
Loading...
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
Sunpal
Model Number:
JGFM-800-2
Weight:
50.0kg, Approx. 50.0 Kg (Tolerance±3%)
Model:
Yuasa 2V 800Ah Battery
Cells Per Unit:
1
Voltage Per Unit:
2
Capacity:
800Ah@10hr-rate to 1.80V per cell @25℃
Internal Resistance:
Approx. 0.6 mΩ
Terminal:
F10(M8)
Max. Discharge Current:
3200A (5 sec)
Design Life:
20 years (floating charge)
Maximum Charging Current:
160.0A
Sealed Type:
Sealed
Maintenance Type:
Free
Usage:
UPS,EPS,Solar, Wind,Telecom
Supply Ability
Supply Ability:
1000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Carton with Pallets
Port
Shanghai/Ningbo
Product Description

GEL 12V 200AH Specification

Model
JGFM-800-2
Cells Per Unit
1
Voltage Per Unit
2
Capacity
800Ah@10hr-rate to 1.80V per cell @25℃
Weight
Approx. 50.0 Kg (Tolerance±3%)
Internal Resistance
Approx. 0.6 mΩ
Terminal
F10(M8)
Max. Discharge Current
3200A (5 sec)
Design Life
20 years (floating charge)
Maximum Charging Current
160.0A
Reference Capacity
C3 624.0AH C5 692.0AH C10 800.0AH C20 848.0AH
Float Charging Voltage
2.27 V~2.30 V @ 25℃ Temperature Compensation: -3mV/℃/Cell
Cycle Use Voltage
2.37 V~2.40 V @ 25℃Temperature Compensation: -4mV/℃/Cell
Operating Temperature Range
Discharge: -40℃~60℃  Charge: -20℃~50℃  Storage: -40℃~60℃
Normal Operating Temperature Range
25℃±5℃
Self Discharge
SUNPAL Valve Regulated Lead Acid (VRLA) batteries can
be stored for up to 6 months at 25℃ and then recharging
is recommended. Monthly Self-discharge ratio is less
than 3% at 25℃.Please charged batteries before using.
Container Material
A.B.S. UL94-HB, UL94-V0 Optional.

Constant Current Discharge Characteristics : A(25℃)

F.V/Time
15MIN
30MIN
1HR
2HR
4HR
8HR
10HR
20HR
1.60V
1010
782.4
523.2
320.8
180.0
106.4
83.2
44.8
16.5V
960.8
751.2
516.8
309.6
176.0
101.6
82.4
44.0
1.70V
896.0
708.0
507.2
304.8
172.0
100.0
81.6
43.2
1.75V
795.2
636.8
466.4
288.0
166.4
96.8
80.8
42.4
1.80V
684.8
580.0
440.0
274.4
160.0
95.2
80.0
41.6
1.85V
579.2
522.4
406.4
259.2
156.0
90.4
77.6
39.2

Constant Power Discharge Characteristics : WPC(25℃)

F.V/Time
15MIN
30MIN
1HR
2HR
4HR
8HR
10HR
20HR
1.60V
1769
1426
974.4
600.8
316.8
202.4
165.6
89.6
16.5V
1722
1418
968.8
592.0
312.0
200.8
164.0
88.0
1.70V
1627
1342
959.2
583.2
311.2
197.6
163.2
86.4
1.75V
1449
1210
900.0
552.8
295.2
191.2
161.6
84.8
1.80V
1254
1103
856.0
527.2
294.4
188.0
160.0
83.2
1.85V
1070
994.4
793.6
499.2
272.8
178.4
155.2
78.4
Certifications

                        ISO14001                                                         ISO9001                                                           GB/T 28001

                            CE                                                                     CNAS                                                                    MSDS
