Sunpal 20 Kw Solar System Kit Grid Tie 20000 Watt Solar Panel System Price

FOB Reference Price:Get Latest Price
$13,799.00 - $16,099.00 / Sets | 1 Set/Sets (Min. Order)
System Type:
On-Grid Solar System
Solar Power (W):
22400W
Shipping:
Support Sea freight · Land freight
Report Suspicious Activity
Overview
Quick Details
Brand Name:
Sunpal
Model Number:
SP20KW3-ON
Specification:
Normal
Application:
Commercial
Output Voltage (V):
400V
Load Power (W):
20KW
Work Time (h):
Depend On Sunshine Duration
Product Name:
20 Kw Solar System
Solar Panel:
280W Mono 60 Cells
DC Cable:
4mm2
DC Disconnect Switch:
1000VDC 16A
On Grid Inverter:
20KW 3 Phase
AC Disconnect Switch:
1000VDC 60A
Online Monitoring:
Wifi/Lan/GPRS
Mounting System:
Pitched Roof For Standards
Warranty:
5/10 Years
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Plywood with Pallets
Port
Shanghai/Ningbo
Product Description

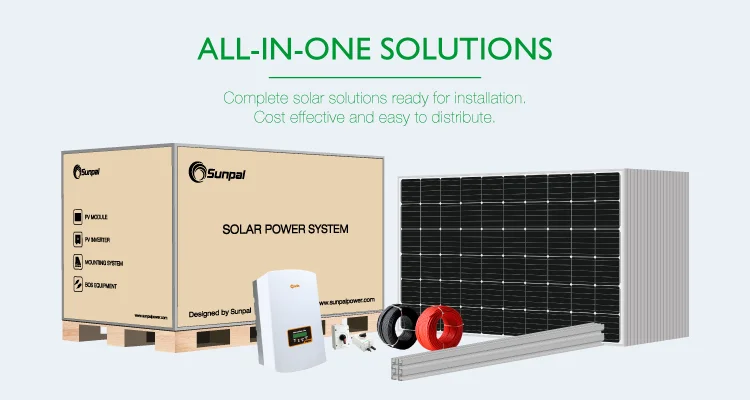

What's Included:

Components
Description
Quantity
Solar Panel
Mono 280W 60 Cells PV Module
80 Pieces
DC Disconnect Switch
IP66 1000VDC 16A
4 Set
On Grid Inverter
20KW Three Phase
1 Set
AC Disconnect Switch
IP 66 1000VDC 3P
1 Set
DC Cable
4mm2
400 Meters
MC4 Connector
4mm2 1000VDC
30 Pairs
Mounting System
Standards Flat Roof ( Customized Optional)
1 Set
PV Tools
Wire Cable Cutter & Stripper, Disassembly Tool
1 Set

Note: Product dimensions and physical appearance in this data sheet are nominal.Sunpal Power reserves the right to make the product changes from time to time,without prior notification, which may change the dimensions and/or physical appearance shown.

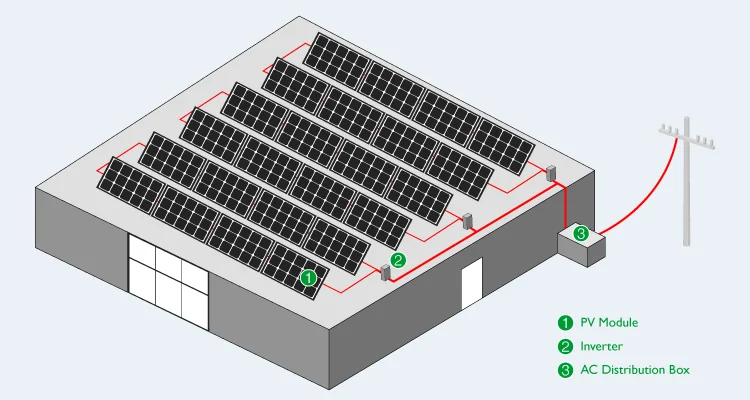

On Grid System Configuration

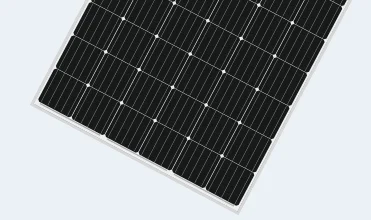

Mono Solar Panels

Peak Power Watts: 280W (SP280M-60)
Maximum Power Voltage: 31.8V
Maximum Power Current: 8.81A
Open Circuit Voltage: 38.8V
Short Circuit Current: 9.33A
Dimensions:1650×992×35 mm (65.0×39.1×1.38 inches)
Weight:18.6 kg (41.0 lb)

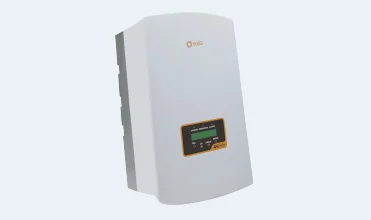

On Grid Inverter & Data Logging Stick

Max.DC Input Power: 23KW

Max. DCInput Voltage: 1000V

MPPT Voltage Range: 200-800V

Rated Grid Voltage: 400V/313-470V

Warranty: 5 Years

Wifi Stick For STD, Lan & GPRS Optional.

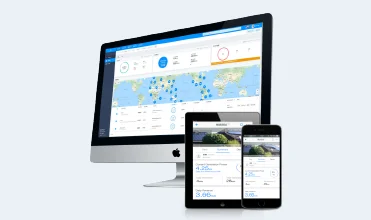

Remote Monitoring System

Data Logging Stick allows you to receive information from solar power system, in order to keep you informed about the situation of your PV system, and the atmosphere conditions, everywhere and every time, thanks to our web server, accessible via Wi-Fi,Lan or GPRS.

App Available for PC, IOS & Andriod

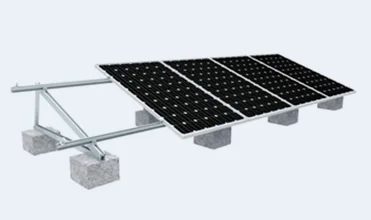

PV Mounting System

Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.

Mid & End Clamps: 35,40,45,50mm

L Foot Asphalt Shingle Moount & Hanger Bolt Optional

Cable Clip & Tie Optional

Ground Clip & Lugs Optional

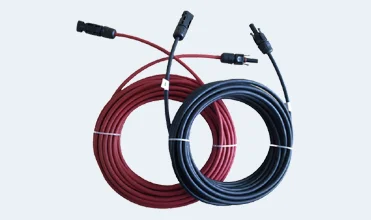

DC Cable & MC4 Connector

Cross Section: 4mm2, 6mm2 Optional

Rated Voltage:600VDC(UL)/1000VDC(TUV)

Rated Current: 55A,70A

Colors: Black For STD, Red Optional.

Lifetime:≤25 Years

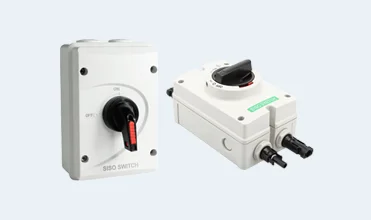

DC & AC Disconnect Switch

IP Rating: IP66

Rated Voltage: 1000VDC

Connection Type: M20,M25,MC4

Rated Current: 16A,60A

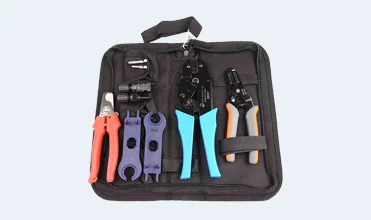

PV Tools

Wire Cable Cutter & Stripper,

MC3 MC4 Crimper

MC4 Connectors Assembly

Disassembly Tool

Warranty

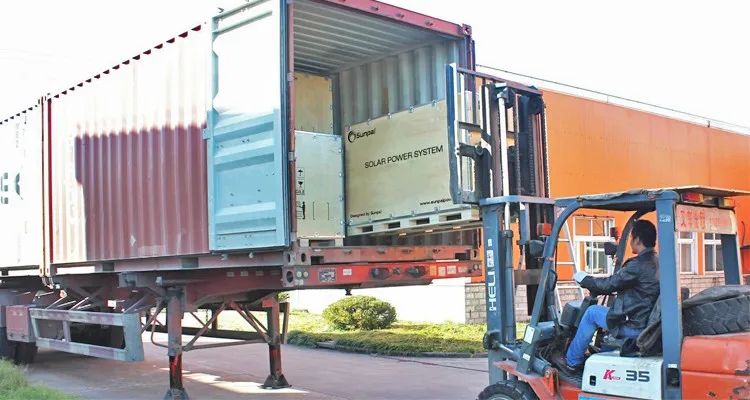

Packing & Delivery
Model
Single Set
20' Container Load
40' Container Load
BSM20KW-ON
7.48 CBM (4 Packages)
3 Sets
7 Sets

Note: The Above packing information contained in this web is subject to change without notice.

Applications

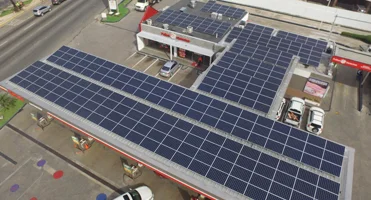

50KW On Grid Commercial Roof Solar System in Mexico

Use 5 Sets 10KW US 4G inverter.

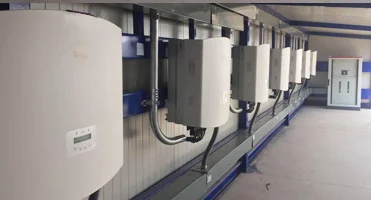

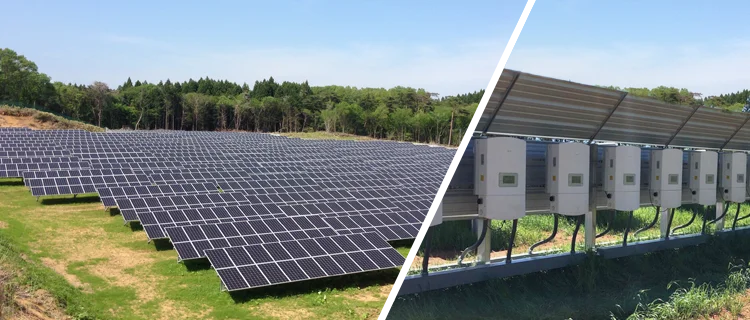

Sunpal 1.5MW Utility Scale Solar System Install In Canada With Solis 40KW US Version Grid Tied Inverter.

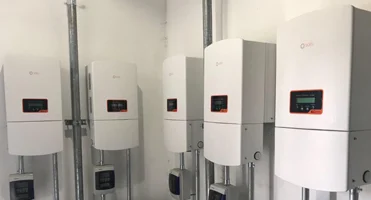

7 Sets 40KW Solis Grid Tied Inverter

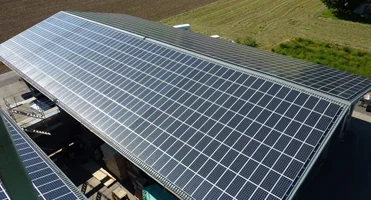

290KW Commercial Roof Solar System Install in Sweden

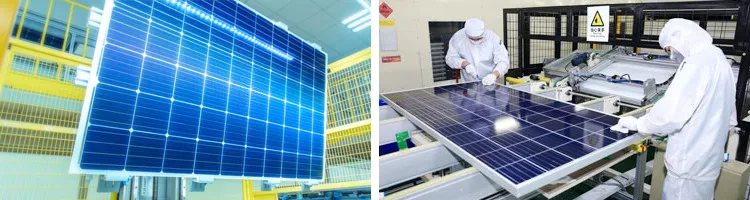

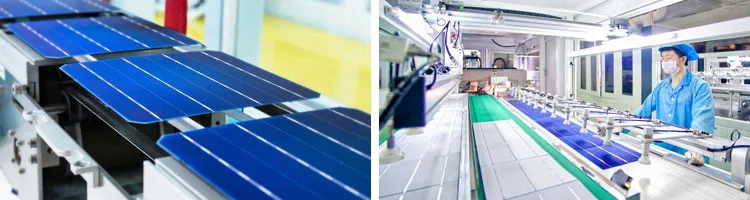

Our Factory
